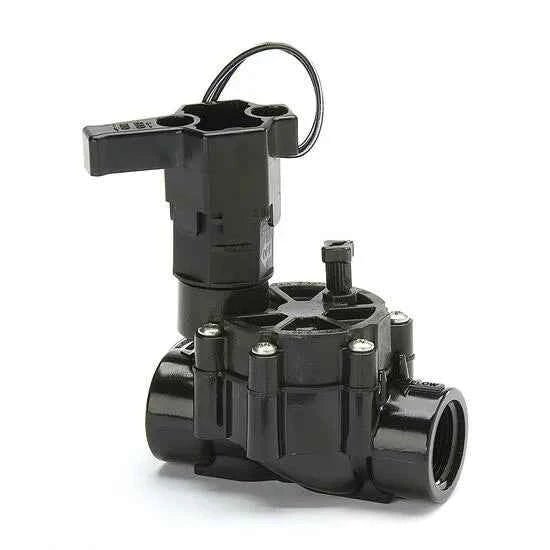

Rainbird DV 1" Solenoid Value - How Do they work.

Did you know that even during a strict UK hosepipe ban, a properly configured drip irrigation system is often still permitted to keep your garden thriving? It's incredibly frustrating to watch your prize vegetables wither while you worry about a potential £1,000 fine for non-compliance. You want a system that's dependable, yet technical hurdles like leaking fittings or the confusion between 24V AC and 9V DC power can make the setup feel overwhelming. We'll help you master the technical details, installation steps, and essential maintenance of the industry-leading Rainbird DV 1" Solenoid Value to ensure your garden stays healthy and hydrated.

In this guide, we'll explain exactly how these professional-grade valves function to prevent grit from clogging your system. You'll learn how to set up a reliable, automated watering schedule that stands up to the elements and meets 2026 water efficiency standards. We'll also cover manual override features and the best ways to protect your equipment during harsh UK winters, giving you the quiet confidence of a specialist.

Table of Contents

• Understanding the Rain Bird DV 1" Solenoid Valve: Why It Matters for 2026

• Key Features and Technical Specifications: Why the DV Series Leads

• Installation Guide: Integrating the 1" DV Valve into Your Irrigation Manifold

• Maintenance and Troubleshooting: Keeping Your Valve Grit-Free

• Choosing the Right Valve for Your UK Garden Irrigation Project

Understanding the Rain Bird DV 1" Solenoid Valve: Why It Matters for 2026

Think of the solenoid valve as the heart of your garden's automated watering system. It's the critical component that receives a signal from your timer and physically opens the flow of water to your plants. As we face stricter water regulations and more frequent hosepipe bans in 2026, having a precise, reliable "gatekeeper" is essential for maintaining a healthy landscape while staying compliant. The Rainbird DV 1" Solenoid Value is designed to handle these demands with professional-grade efficiency, ensuring that every drop of water is delivered exactly when and where it's needed.

For those new to automated systems, understanding how solenoid valves work is the first step toward a successful DIY installation. These devices use an electromagnetic coil to lift a plunger, which then allows water pressure to open a rubber diaphragm. Because this process happens instantly and automatically, you can schedule your watering for the early hours of the morning when evaporation is at its lowest. This level of control is exactly what makes the Rainbird DV 1" Solenoid Value a staple for UK gardeners who want to move beyond simple manual taps.

To better understand this concept, watch this helpful video:

The "DV" in the name stands for Domestic Valve, but don't let that fool you. This series is built to the same high standards as commercial equipment. In the UK, we specifically use the 1" BSP (British Standard Pipe) thread version. This standard ensures the valve fits perfectly onto common irrigation manifolds and tap connectors without the need for complex adapters. These valves operate on a 24V AC current, making them compatible with almost all multi-zone garden irrigation water timers. This low-voltage setup is safe for outdoor use and provides the consistent power needed to snap the valve open against high mains water pressure.

The Anatomy of a Rain Bird DV Valve

Durability is at the core of the DV series design. The body is constructed from heavy-duty PVC, which is specifically chosen to withstand temperature extremes and UV exposure in a valve box. Inside, a balanced pressure diaphragm ensures a long life by equalising the force on the rubber, preventing premature tears. The solenoid itself is fully encapsulated, protecting the delicate internal wiring from moisture and corrosion. A captured plunger design also means you won't lose small parts in the mud if you ever need to perform maintenance in the field.

Residential vs. Light Commercial Applications

While it's a favourite for residential gardens, this valve is robust enough for light commercial spaces or large estates. It handles a wide pressure range from 1.0 to 10.4 bar, which is ideal for the varied water pressures found across the UK. Whether you are running a delicate drip irrigation system for your flower beds or a high-flow popup sprinkler zone for a large lawn, the DV valve manages the flow without significant pressure loss. Its versatility allows it to serve as a single reliable component across many different types of watering zones.

Key Features and Technical Specifications: Why the DV Series Leads

The Rainbird DV 1" Solenoid Value stands out because it balances high-end performance with simple, user-friendly features. One of its most significant advantages is the wide pressure range, operating smoothly between 1.0 and 10.4 bar. This flexibility means it works just as well in a low-pressure suburban garden as it does in a high-pressure commercial setting. It's built to handle flow rates from 0.05 to 9.08 m³/h, making it the perfect choice for everything from delicate micro-drip zones to powerful popup rotors. This versatility allows you to standardise your system with one reliable valve type.

Adopting water-efficient irrigation practices is easier when your hardware is designed for precision. The DV series uses an energy-efficient, low-power solenoid that draws minimal current. This reduces the heat generated and puts less strain on your irrigation controller, ensuring your automated schedule remains consistent year after year. Because the solenoid is encapsulated, it stays protected from the damp environment of an underground valve box, preventing the electrical failures that often plague cheaper alternatives.

Grit Resistance and Self-Cleaning Mechanisms

System failures are often caused by small particles of sand or grit that prevent a valve from closing. The Rainbird DV 1" Solenoid Value solves this with a double-filtered pilot flow. A 200-micron pilot water filter catches debris before it can reach the internal mechanisms. This is paired with a rugged Buna-N diaphragm, which is highly resistant to the mineral buildup often found in hard water areas across the UK. This self-cleaning design is a deal-breaker for those using well-water or systems where perfect water filtration isn't always possible.

Manual Operation and External Bleed

There are times when you need to run your sprinklers without walking back to the controller. The DV valve features a 1/4-turn manual ON/OFF control that lets you activate the zone by hand. This design is "spray-free," so you won't get soaked while turning it on. Additionally, an external bleed screw allows you to flush out dirt and debris during your initial system start-up or after winter maintenance. If you're looking to upgrade your current setup, you can find compatible garden irrigation water timers to pair with these professional valves for a fully automated experience.

Manual testing is also made simpler with the internal bleed feature. This allows you to trigger the valve without releasing water into the valve box itself, keeping your manifold area dry and easy to work in. These thoughtful technical details ensure that the valve isn't just reliable during operation but is also straightforward to manage throughout the gardening season.

Installation Guide: Integrating the 1" DV Valve into Your Irrigation Manifold

Setting up your manifold correctly is the foundation of a trouble-free watering system. Before you start digging, choose a location for your valve box that's easily accessible for future maintenance. Placing the manifold near your water source or on a slightly elevated part of the garden helps prevent water from pooling around the electrical components. This careful planning ensures your Rainbird DV 1" Solenoid Value remains protected and easy to reach if you ever need to use the manual override features.

Achieving a watertight seal on the 1" BSP threads is a common area of concern for DIY installers. To ensure success, wrap PTFE tape around the male threads in a clockwise direction. Usually, six to eight overlapping wraps provide enough bulk to fill the thread gaps. Tighten the valve onto the manifold by hand first, then give it one final turn with a wrench. Be careful not to over-tighten; the high-quality PVC body is incredibly strong, but excessive force can stress the fittings over time. Once the mechanical connections are secure, you can move on to the electrical setup.

Wiring your solenoid to a 24V AC controller is straightforward if you use the right materials. Each Rainbird DV 1" Solenoid Value has two wires; one connects to the "Common" terminal on your timer, and the other goes to the specific zone terminal. It's vital to use waterproof wire connectors filled with silicone gel. These protect the copper from corrosion in the damp environment of the valve box. Before you bury any pipes, run a test cycle from your controller. Check for leaks at the threads and ensure the flow is consistent across the entire zone. Taking ten minutes to verify this now prevents the headache of digging up your lawn later.

Connecting to Hozelock and Claber Systems

Many UK gardeners already have existing setups and wonder how to bridge different brands. You can easily integrate these professional valves by using irrigation fitting adaptors to convert the 1" BSP threads to standard 13mm or 19mm supply pipes. This allows you to build a sophisticated multi-zone manifold that combines the reliability of Rain Bird valves with the familiar components of Hozelock or Claber systems. It's a practical way to upgrade a basic garden kit into a high-performance automated network.

Essential Tools and Accessories

A sturdy valve box is your first line of defence against the elements. It keeps soil away from the solenoid and provides a layer of insulation against light frost. For a clean and professional look, use multi-core irrigation cable to run your wiring back to the controller. This bundled wire is much easier to manage than several individual strands. Finally, consider installing a master valve at the start of your manifold. This acts as a primary safety shut-off, protecting your garden from major water loss if a downstream pipe ever develops a leak while the system is off.

Download as HTML

Maintenance and Troubleshooting: Keeping Your Valve Grit-Free

Even the most reliable systems require occasional attention to maintain peak performance. The most frequent issue gardeners face with a Rainbird DV 1" Solenoid Value is a valve that fails to shut off completely. This typically occurs when a small particle of grit or debris bypasses the filters and lodges itself under the diaphragm seat. You'll notice a sprinkler head weeping or a zone that stays on long after the controller has finished its cycle. Thankfully, these valves are designed for field serviceability, meaning you can resolve most issues in minutes without professional help.

One of the biggest advantages of this series is that you can disassemble the unit without removing it from the pipework. This "top-entry" design allows you to clear blockages while the valve body remains securely connected to your manifold. If you're finding that multiple components in your setup are starting to show their age, it might be time to browse our range of garden watering kits to find high-quality replacements and upgrades. This approach keeps your system efficient and prevents the water waste that often leads to high utility bills.

Preparing for UK winters is another vital part of your maintenance routine. Frost can be incredibly damaging to irrigation components if water is left to settle inside them. As temperatures drop, water expands; this can lead to cracks in the PVC body or the solenoid housing. Always ensure you drain your manifold and use the manual bleed screws to release any trapped pressure before the first freeze. This simple habit ensures your system is ready to perform as soon as spring arrives, protecting your investment from the harsh elements.

Step-by-Step Diaphragm Cleaning

To clean the internal mechanisms, start by unscrewing the stainless steel Philips head screws on the bonnet. Carefully lift the top section, being mindful of the captive spring. This design is brilliant because it prevents the spring from popping out and getting lost in the soil. Inspect the Buna-N diaphragm for any visible tears or embedded grit. Rinse both the diaphragm and the valve seat with clean water to restore a smooth surface. When reassembling, tighten the screws in a cross pattern to ensure an even, leak-free seal across the bonnet.

Electrical Troubleshooting

If your valve refuses to open, the problem might be electrical rather than mechanical. Use a multimeter to check for continuity across the two solenoid wires; a reading of zero or infinity usually means the internal coil has failed. You might also hear a distinct "chattering" or buzzing sound when the zone is active. This often points to an underpowered transformer or a loose connection in your waterproof wire joiners. In many cases, you can simply unscrew the old solenoid and replace it with a new one, avoiding the need to cut out the entire valve body.

Choosing the Right Valve for Your UK Garden Irrigation Project

Selecting the right hardware is the final step in your planning process. While the standard Rainbird DV 1" Solenoid Value is the perfect choice for the vast majority of UK gardens, there are a few variations to consider. The most common alternative is the DVF model, which includes a manual flow control handle. This feature is incredibly useful if you need to throttle the water pressure for very small zones, such as a single flower bed or a short run of drip line. If your system has high mains pressure, the DVF allows you to fine-tune the output to prevent misting or damage to delicate plants.

For gardens where running a mains power cable is difficult, you might need to look at 9V latching solenoids. These are designed to work with battery-powered controllers that sit directly on your tap or in a valve box. They function differently from the standard 24V AC models we've discussed, using a quick pulse of energy to lock the valve open or closed. The 1" model remains the sweet spot for domestic layouts because it balances high flow capacity with a compact size that fits into standard valve boxes without crowding your manifold.

Expert Advice from Garden Watering

We believe that a successful garden starts with a solid plan. You can leverage our 15 years of specialist experience by exploring our guides on design ideas and plans. We often recommend Rain Bird components because of their exceptional build quality and their seamless compatibility with Hozelock automatic watering systems. This cross-brand compatibility gives you the freedom to build a custom setup that meets your specific needs. To ensure your system runs efficiently during 2026 water restrictions, it's vital to pair your valves with high-quality garden irrigation water timers that offer precise scheduling.

Next Steps for Your Irrigation System

If you're just starting your journey, a pre-configured Hozelock watering kit is an excellent way to cover smaller borders with minimal fuss. For those looking to achieve professional results on a larger scale, upgrading to pop-up lawn sprinkler systems will provide the even coverage your turf needs to stay green. We don't just sell parts; we act as your dedicated partner in garden health. If you're unsure which valve or fitting is right for your garden size, reach out to our team for a bespoke recommendation. We're here to provide the expert advice you need to DIY your installation with total confidence.

Build a More Reliable Garden Irrigation System

Master the technical details of your watering system to ensure a healthy landscape even during the driest months. By choosing the Rainbird DV 1" Solenoid Value, you're investing in a component that offers professional-grade grit resistance and a durable design that stands up to UK winters. These valves provide the reliable, automated control needed to meet modern water efficiency standards while giving you total peace of mind.

As a UK-based specialist retailer with 15 years of industry experience, Garden Watering is here to support your project. We're trusted by landscaping professionals for our expertise in automatic watering kits and high-performance parts. Whether you're troubleshooting an existing manifold or planning a brand-new layout, our team provides the expert advice needed to help you succeed without the need for external installation services.

Take the next step toward a more efficient garden. Explore our range of Rain Bird Solenoid Valves and Accessories at gardenwatering.co.uk to find the perfect fit for your system. Your garden is in capable hands, and we're excited to help you build a system that lasts for seasons to come.

Frequently Asked Questions

What is the difference between the Rain Bird DV and DVF models?

The main difference is that the DVF model includes a manual flow control handle on top of the bonnet, while the standard DV model does not. This handle allows you to physically reduce the water flow for specific zones, which is helpful if you're running short lengths of drip line or delicate sprayers. For most standard lawn and garden applications, the standard model is perfectly sufficient and easier to fit in tight valve boxes.

Can I use a Rain Bird DV 1" valve with a Hozelock controller?

You can use this valve with a Hozelock controller as long as it is a 24V AC mains-powered model. Most standard Hozelock tap-mounted timers are battery-operated and won't provide the current needed for a 24V solenoid. If you're using a professional multi-zone controller, the compatibility is excellent across most major brands, allowing you to build a high-performance automated network.

Does the Rain Bird DV valve require a specific water pressure to operate?

Yes, the valve requires a minimum operating pressure of 1.0 bar (15 psi) and can handle up to 10.4 bar (150 psi). Because it's a pressure-assisted design, it uses the water's own force to help seat the diaphragm and maintain a watertight seal. If your pressure is below this minimum threshold, the valve may fail to open or, more commonly, fail to close correctly after a watering cycle.

How do I manually bleed the Rain Bird DV valve during installation?

To manually bleed the valve, turn the external bleed screw on the top of the bonnet about a quarter to half-turn counter-clockwise. This releases water from the internal chamber, causing the valve to open immediately without an electrical signal. It's a great way to flush out air or dirt during the initial system startup or to test your pipework for leaks without getting soaked by the sprinklers.

Is the Rain Bird DV 1" valve suitable for reclaimed or grey water?

The Rain Bird DV is primarily designed for clean water systems. While its 200-micron filter is robust, grey water often contains hair, lint, or chemicals that can degrade the Buna-N diaphragm or clog the pilot hole. If you must use reclaimed water, ensure you have a high-quality 100-mesh pre-filter installed upstream to protect the internal mechanisms and ensure the long-term health of your system.

What should I do if my solenoid valve is making a humming or buzzing noise?

A humming or buzzing sound is usually a sign of an electrical problem rather than a mechanical failure. Check your wire connections for corrosion and ensure you're using silicone-filled waterproof connectors to maintain a clean signal. It can also happen if the transformer in your controller is failing or if there's a significant voltage drop over a very long cable run between the timer and the valve.

Can I install the Rain Bird DV valve vertically?

You can install the valve in any orientation, including vertically or even upside down, without affecting its performance. However, it's best practice to install it with the solenoid facing upward whenever possible. This makes it much easier to access the bleed screw and perform maintenance if you ever need to clean the internal diaphragm or replace the solenoid coil in the future.

How many valves can I run off a single irrigation controller?

Most standard irrigation controllers can comfortably run one or two valves per zone simultaneously, in addition to a master valve. The Rainbird DV 1" Solenoid Value typically has an inrush current of 0.450A, so you must check your controller's power rating to ensure it can handle the combined load. Running too many valves at once can cause a voltage drop, leading to the buzzing sounds mentioned earlier.

`
