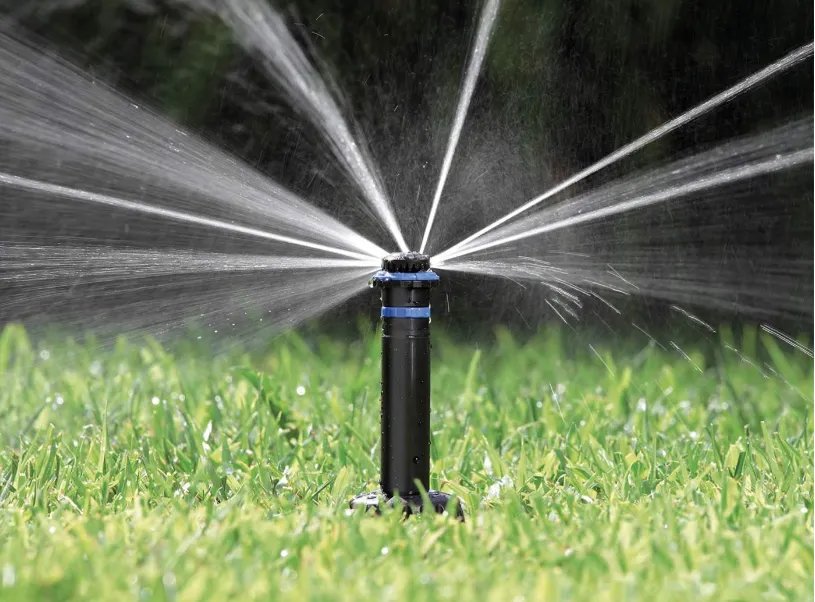

Claber Turbo-Jet Popup Lawn Sprinlkler 90266 - Lush Lawns

Imagine waking up to find a growing muddy puddle around your sprinkler base while the rest of your grass develops frustrating brown patches. It's a common headache for gardeners who want a professional result but struggle with mismatched pipe sizes or underground leaks. If you're using the Claber Turbo-Jet Popup Lawn Sprinlkler 90266, you've already taken a step toward a high-performance garden, but the real secret to success lies in the precision of your connections. We understand that you want a perfectly green lawn with zero manual effort and a system that actually lasts.

In this guide, we'll help you master your lawn irrigation with an expert breakdown of the Claber 90266 and the essential fittings needed for a professional setup. You'll gain a clear's understanding of this sprinkler's 4-meter range and water requirements to ensure even coverage across your entire landscape. We'll also walk you through selecting the right Hozelock adaptors to create a leak-free underground system that stands the test of time, giving you total confidence in your garden's health.

Table of Contents

• What is the Claber Turbo-Jet Popup Sprinkler 90266?

• Choosing the Right Nozzle and Range for Your Lawn

• The Critical Connection: Essential Fittings for Your Claber 90266

• Planning Your Pop-up Layout: The Head-to-Head Rule

• Building Your System with Hozelock Fittings & Adaptors

What is the Claber Turbo-Jet Popup Sprinkler 90266?

The Claber Turbo-Jet Popup Lawn Sprinlkler 90266 represents a professional-grade solution for homeowners who value both performance and a peaceful garden environment. It functions as a gear-driven turbine, which means it uses internal water pressure to power a series of silent gears that rotate the head. This design is significantly more efficient than standard surface sprinklers because it delivers a consistent curtain of water across a radius of 8.5 to 12 metres. As a specialized irrigation sprinkler, it's designed to be buried underground, featuring a 4-inch pop-up height that ensures the nozzle clears the grass blades before it begins its watering cycle. When the water is turned off, the head retracts completely, leaving your lawn safe for mowing and play.

To better understand how these systems integrate into a garden landscape, watch this helpful video:

Turbine vs. Impact Sprinklers: The Silent Advantage

Most people recognize the rhythmic "click-clack" sound of traditional impact sprinklers. While effective, they can be noisy and prone to wear from external debris. The Claber Turbo-Jet Popup Lawn Sprinlkler 90266 offers a silent advantage by enclosing its gear mechanism within a sealed body. This prevents dirt, grit, and grass clippings from entering the moving parts, which is a common cause of failure in older systems. The result is a smooth, continuous rotation that ensures even water distribution. You won't find the pooling or "dry spots" often associated with the jerky movements of impact models. It's a dependable choice for maintaining pop-up lawn sprinkler systems that need to perform day after day without manual intervention.

Key Specifications for the 2026 Model

The latest version of this turbine is built for versatility. It features an adjustable arc that you can set anywhere from 40° to a full 360°. This allows you to tailor the watering pattern to fit narrow corners or wide-open lawn spaces precisely. Each unit comes with a set of interchangeable nozzles. These are essential for matching the sprinkler's output to your specific water pressure, typically requiring between 1.5 and 3 bar for optimal performance. To further protect your investment, the design includes a built-in removable filter. This captures any fine grit from the water supply before it reaches the turbine, ensuring the internal components remain clean and functional for years to come. With its standard 1/2" female BSP inlet, it integrates perfectly into professional-grade underground layouts.

Choosing the Right Nozzle and Range for Your Lawn

The Claber Turbo-Jet Popup Lawn Sprinlkler 90266 is a precision tool, but its effectiveness depends entirely on how you configure its output. Each unit comes with a set of interchangeable nozzles designed to control both the "throw" distance and the volume of water delivered. Selecting the right nozzle isn't just about reaching the edge of the grass; it's about achieving Matched Precipitation. This professional concept ensures that if you have one sprinkler covering a 90 degree corner and another covering a full 360 degree circle, they both apply the same depth of water to the ground over the same period. Without this balance, you'll end up with soggy patches in some areas and dry rings in others.

Before you install your system underground, you must calculate your garden's flow rate. You can do this easily with a 10-litre bucket and a stopwatch. Time how many seconds it takes to fill the bucket from your main water source. Divide 600 by the number of seconds to find your litres per minute (L/min). Matching this data to the nozzle chart provided with your Claber 90266 ensures that your system won't "starve" for water when multiple heads pop up simultaneously. If your flow rate is lower than the total requirements of your sprinklers, you'll need to divide the garden into separate zones using automatic water timers to run each section independently.

Adjusting the Radius and Arc

Setting your watering boundaries is straightforward with the included adjustment key. You'll find a small socket on the top of the head to set the left and right rotation stops. It's vital to set these boundaries before you bury the unit; trying to adjust a submerged sprinkler often leads to grit entering the mechanism. If the spray is overshooting your flower beds, you can slightly reduce the throw distance by turning the radius adjustment screw. This diffuses the stream without disrupting the uniform spray pattern, ensuring the water remains on the lawn where it belongs.

Water Pressure Requirements in the UK

The ideal operating pressure for the Claber 90266 is 2.0 bar to achieve an optimal 10m throw. While these turbine sprinklers can function between 1.5 and 3 bar, anything below the minimum threshold will cause the pop-up mechanism to struggle. If your pressure is too low, the riser may not fully extend, causing water to pool around the base of the sprinkler rather than spraying across the turf. For homes with lower pressure, integrating a booster pump or reducing the number of heads per zone are the most reliable ways to maintain high-efficiency performance.

The Critical Connection: Essential Fittings for Your Claber 90266

A high-performance sprinkler is only as reliable as the plumbing that feeds it. Most DIY installation failures occur at the connection between the supply pipe and the sprinkler base. The Claber Turbo-Jet Popup Lawn Sprinlkler 90266 is engineered with a 1/2" female thread, which requires a precise, high-quality male adaptor to prevent high-pressure blow-outs. If the connection is weak, the vibration of the gear-driven turbine can slowly loosen the join, leading to underground leaks that waste water and saturate your lawn's subsoil.

We recommend using professional-grade Hozelock Irrigation Fittings to ensure a secure, watertight seal. These components are designed to withstand the consistent pressure required for turbine systems. To further protect your investment, consider using a swing pipe or a flexible riser. These short lengths of flexible tubing connect the main supply line to the sprinkler body. They allow the head to move slightly if it's stepped on or driven over by a heavy lawnmower, preventing the rigid main pipe from snapping under the turf.

BSP Threads Explained for Gardeners

It's vital to understand the difference between BSP (British Standard Pipe) threads and the standard click connectors used on garden hoses. BSP threads are designed for permanent, high-pressure plumbing. Because the Claber Turbo-Jet Popup Lawn Sprinlkler 90266 uses a 1/2" female BSP inlet, you must apply PTFE tape to the male threads of your adaptor before assembly. This tape fills the microscopic gaps between the threads, ensuring a 100% watertight join. For more details on choosing the right parts for your setup, check out our Hozelock Connectors guide.

Preventing Leaks and Pressure Loss

Modern irrigation adaptors rely on high-quality O-rings to maintain pressure. When building your system, you'll need to choose between 13mm and 19mm supply pipes. If you're running more than two sprinklers on a single line, 19mm pipe is generally the better choice. It reduces friction and prevents the pressure loss that can happen over long distances. Once your pipes are laid, use "U" shaped ground clamps to keep the lines flush against borders. This prevents the pipes from shifting during the backfilling process, keeping your layout exactly where you planned it.

Planning Your Pop-up Layout: The Head-to-Head Rule

Achieving a uniform, lush green lawn requires more than just installing high-quality hardware. It requires a calculated layout. The "Head-to-Head" rule is the industry standard for professional irrigation. This principle dictates that the water spray from one Claber Turbo-Jet Popup Lawn Sprinlkler 90266 must reach all the way to the base of the next sprinkler in the line. This overlap is essential because pop-up heads naturally deliver less water to the area immediately surrounding their own base. By overlapping the spray patterns, you eliminate the "dry rings" that frequently plague poorly planned DIY systems.

To begin your planning process, follow these four logical steps:

• Step 1: Map your lawn dimensions on paper and identify the exact location of your outside tap.

• Step 2: Determine the radius of each 90266 unit based on your garden's water pressure. As discussed previously, 2.0 bar typically provides a 10-metre throw.

• Step 3: Mark your sprinkler positions on the map, ensuring the distance between any two heads doesn't exceed their spray radius.

• Step 4: Calculate your total water demand. If the combined flow rate of your planned heads exceeds your tap's capacity, you must group them into separate zones.

Avoiding Common Layout Mistakes

Many gardeners make the mistake of only placing sprinklers in the corners of a rectangular lawn. While this seems logical, it often leaves a stubborn dead spot in the very center where the spray doesn't reach. In exposed UK gardens, you should also account for wind drift. If your lawn is subject to strong prevailing winds, reduce the spacing between your heads slightly to ensure the water isn't blown off-target. For more help with complex garden shapes, see our Design Ideas and Plans blog for layout templates that simplify the process.

Zoning Your System

Most standard UK outside taps provide enough pressure and flow to run 2-3 Claber Turbo-Jet Popup Lawn Sprinlkler 90266 units simultaneously. If your garden is large and requires more heads, you'll need to use a multi-way water timer to manage different lawn areas automatically. This allows the system to water one zone, shut it down, and then open the next, maintaining the high pressure required for the turbine mechanisms to function correctly. Read our Lawn Sprinkler Guide 2026 for deeper insights into advanced zoning techniques. If you're ready to start building, explore our full range of pop-up lawn sprinkler systems to find the perfect components for your project.

Building Your System with Hozelock Fittings & Adaptors

While the Claber Turbo-Jet Popup Lawn Sprinlkler 90266 acts as the high-performance "muscle" of your irrigation system, the fittings you choose serve as the essential "skeleton." Without a robust network of connectors, even the most advanced turbine head cannot perform its job effectively. A professional setup relies on the integrity of every joint to maintain the constant pressure required for a full 10-metre throw. Our curated collection of Hozelock Irrigation Fittings ensures universal compatibility, allowing you to bridge the gap between different specialist brands with total confidence.

Must-Have Accessories for the Claber 90266

To move from a basic pipe run to a professional-grade installation, you'll need a few specific accessories to navigate your garden's unique layout. We recommend keeping these essentials on hand:

• Threaded Elbow Connectors: These are vital for making sharp 90-degree turns in narrow trenches without kinking the supply pipe.

• T-Pieces: Use these to branch off your main supply line, allowing you to feed multiple sprinklers from a single run.

• End Plugs: These are essential for the final sprinkler in your line, sealing the system to maintain the high pressure your turbines need to pop up.

The Garden Watering Advantage

With 15 years of experience in specialized irrigation, we've learned exactly which components stand up to the rigours of a UK winter. We only stock fittings that have proven their reliability in the field, ensuring your system remains leak-free year after year. Our team provides the expert advice you need to mate different brands like Claber and Hozelock seamlessly, taking the guesswork out of your DIY project. We're dedicated to helping you achieve a professional result without the need for expensive contractors. Explore the full range of Hozelock Irrigation Fittings & Adaptors today and take the first step toward a perfectly automated lawn.

Achieve a Professional Lawn with Confidence

Mastering your garden irrigation means looking beyond the sprinkler head itself. You now understand how the "Head-to-Head" rule ensures every inch of your grass receives uniform water, and why calculating your flow rate is the first step to a successful layout. Choosing the Claber Turbo-Jet Popup Lawn Sprinlkler 90266 is a smart investment in silence and efficiency, but its long-term performance relies on the quality of your underground connections.

With over 15 years of irrigation expertise, we understand the specific challenges of the UK climate. We recommend pairing your turbine with durable, UV-resistant Hozelock components to prevent high-pressure blow-outs and winter damage. Our specialist UK-based support team is always here to help you navigate technical requirements and ensure your setup is built to last. Don't leave your lawn's health to chance; take the next step toward a perfectly automated garden today.

Browse Hozelock Irrigation Fittings to Complete Your System

Your journey to a lush, maintenance-free lawn starts with the right plan and the right parts. We're here to help you get it right the first time.

Frequently Asked Questions

Can I connect the Claber 90266 directly to a standard garden hose?

You can't connect it directly because it uses a professional 1/2" female BSP thread. You'll need a male threaded adaptor to attach it to a pipe or hose. For the best results, we suggest using a permanent underground supply line rather than a loose garden hose. This ensures the unit stays stable and maintains the consistent pressure needed for the turbine to function.

How deep should I bury the Claber Turbo-Jet Popup Lawn Sprinlkler 90266?

You should bury the body so the top of the cap is exactly flush with the soil surface. This usually requires a trench approximately 20cm deep to allow room for the 4-inch body and the connecting pipework. Setting it at this height ensures the Claber Turbo-Jet Popup Lawn Sprinlkler 90266 pops up clear of the grass but stays safe from lawnmower blades when retracted.

What is the difference between the Claber 90266 and the 90478 model?

The main difference lies in the watering mechanism and coverage area. The 90266 is a gear-driven turbine that rotates silently to cover a large radius up to 12 metres. In contrast, the 90478 is a static model that sprays a fixed pattern over a smaller area. Choose the 90266 for medium to large lawns where you need adjustable, long-distance coverage across the turf.

Do I need a water pump to run these pop-up sprinklers?

You only need a pump if your mains water pressure falls below 1.5 bar. Most UK residential taps provide between 2 and 3 bar, which is plenty for 2 or 3 heads. If you're planning a larger system with many sprinklers running at once, you might need a booster pump to maintain the flow rate required for the internal turbines to rotate correctly.

How do I winterise my pop-up sprinkler system in the UK?

To winterise your system in the UK, you must remove all standing water from the pipes before the first hard frost. Install a manual or automatic drain valve at the lowest point of your pipe network. This prevents water from freezing and expanding inside the Claber Turbo-Jet Popup Lawn Sprinlkler 90266, which could crack the internal gear housing or the outer casing.

Why is my Claber pop-up sprinkler not rotating?

Rotation failure is almost always caused by either low water pressure or trapped debris. First, clean the removable internal filter to ensure no grit is blocking the flow. If the filter is clear, check that your system is delivering at least 1.5 bar of pressure. Without enough "push," the internal gears won't have the power to complete the rotation cycle and distribute water evenly.

Can I use the Claber 90266 with reclaimed greywater or a water butt?

You should avoid using greywater or unfiltered water butts with this model. The precision gears inside the turbine are sensitive to small particles like hair, lint, or sediment, which can cause permanent damage. Additionally, most gravity-fed water butts don't provide the 1.5 bar of pressure needed to lift the pop-up riser and initiate the spray pattern across your lawn.

`
